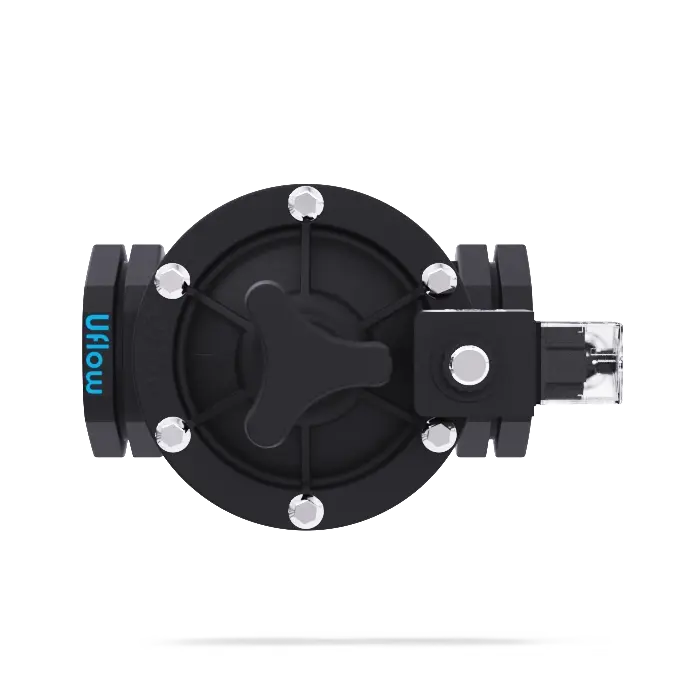

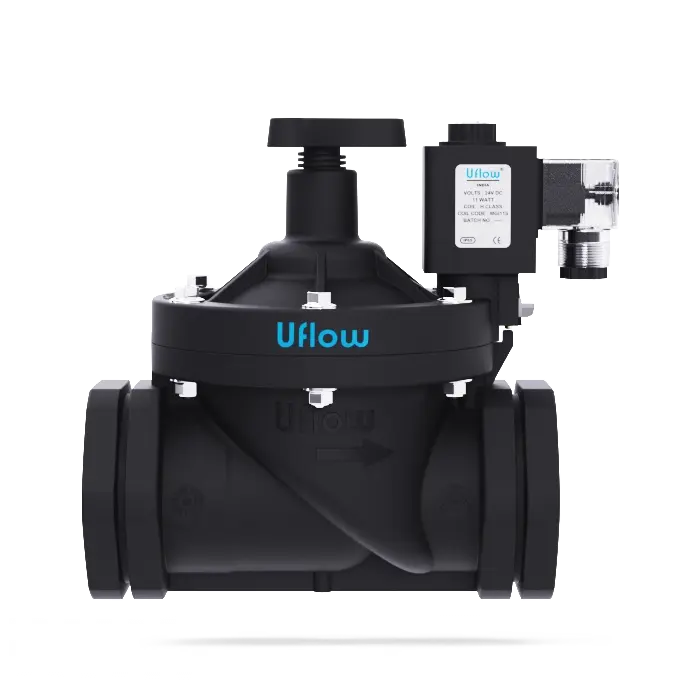

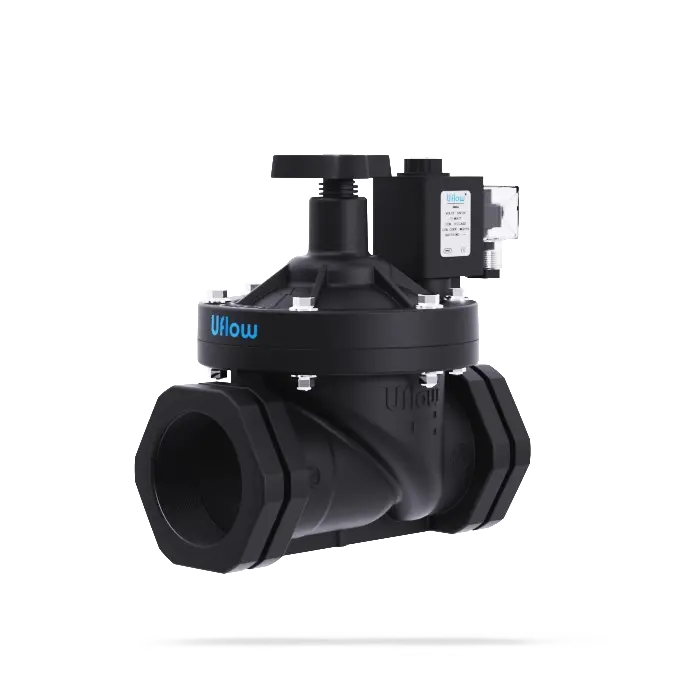

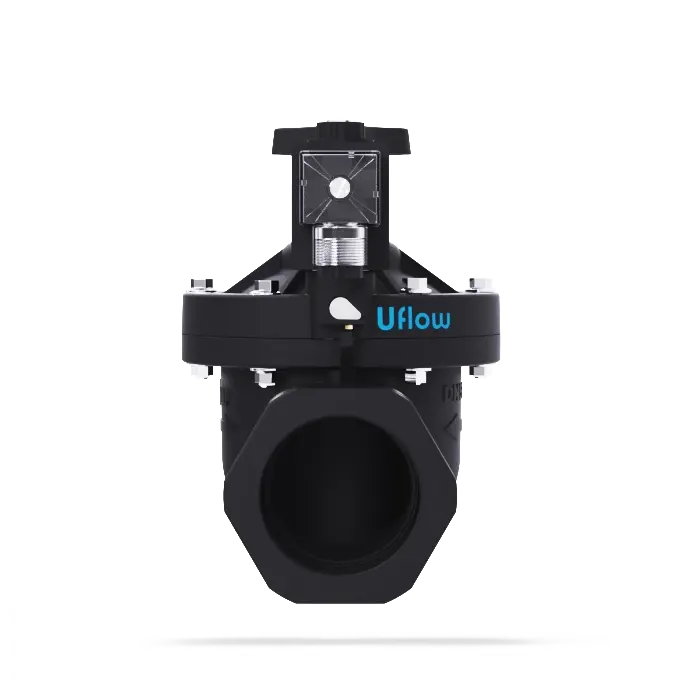

Port
Refer below technical data sheet ( BSP/NPT)
End Connection
Screwed
Body Material
Nylon GF
Diaphragm
Natural Rubber
Max Media Temp
5°C to 50°C
Circumstance Temp
-10°C to 50°C
Media
Water
Coil Housing
IP65 Epoxy square coil, IP65 Metallic round enclosure, IP68 Weatherproof enclosure
Note
Use of filter in the inlet port is recommended.
operating voltage
| 24AC | 24DC | 12DC |
power consumption
| 8W | 8W | 8W |
coil features
High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Other Specification Data
Available on Request
| Model No. | Body Material | Pipe (Inch) | Orific (mm) | Min. Operating Pressure mbar | Max. Operating Pressure bar | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
|---|---|---|---|---|---|---|---|
| PNN-3TF | Nylon GF | ¾” | 20 | 0.5 | 10 | Natural Rubber | 8 |
| PNN-4TF | Nylon GF | 1” | 25 | 0.5 | 10 | Natural Rubber | 12 |
| PNN-6TF | Nylon GF | 1½” | 40 | 0.5 | 10 | Natural Rubber | 23 |
| PNN-8TF | Nylon GF | 2” | 52 | 0.5 | 10 | Natural Rubber | 38 |
| Model No. | Port Size | Diagram No. | A | B | C |
|---|---|---|---|---|---|
| PNN-3TF | ¾” | 55.1 | 108 | 110 | 81 |
| PNN-4TF | 1” | 55.1 | 114 | 110 | 81 |
| PNN-6TF | 1½” | 55.1 | 180 | 160 | 126 |
| PNN-8TF | 2” | 55.1 | 190 | 170 | 126 |
- Inbuilt Flow Control Capabilities.
- Manual Override in All The Valve.
- Pressure Below Seat to Reduce Water Hummer
- Low Head Loss With High Flow
