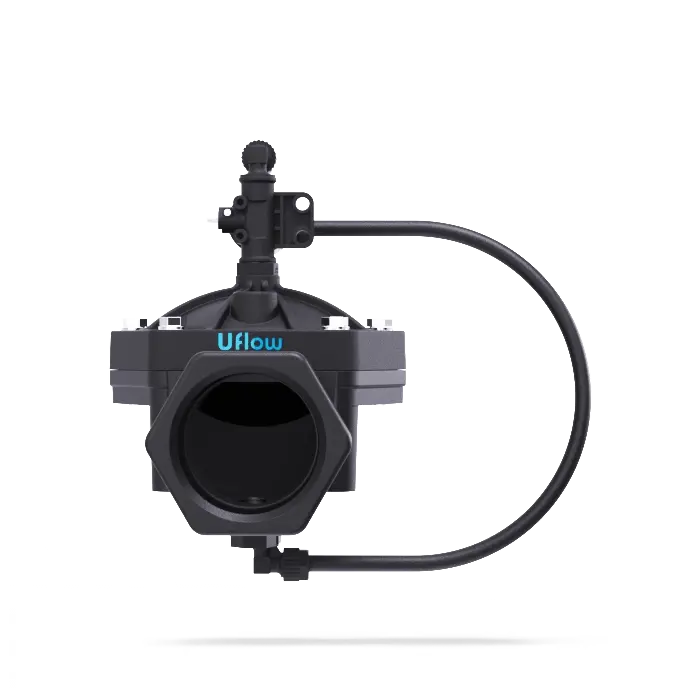

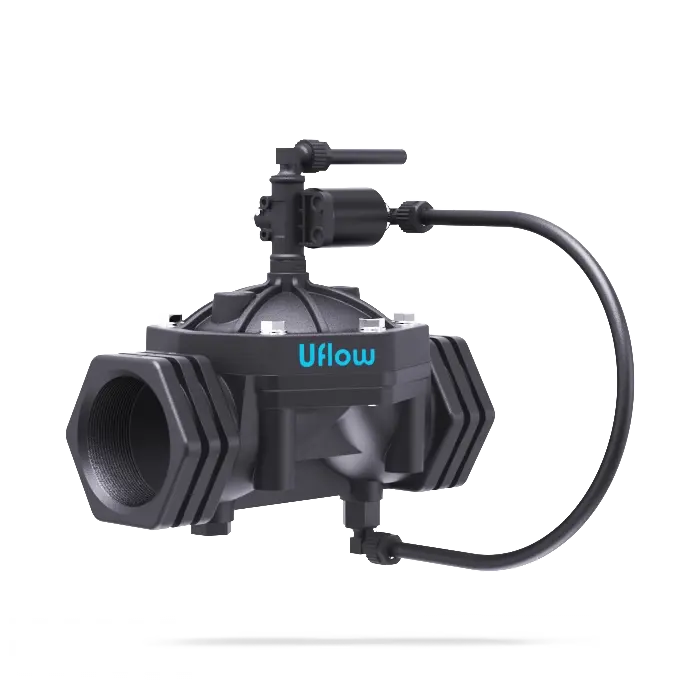

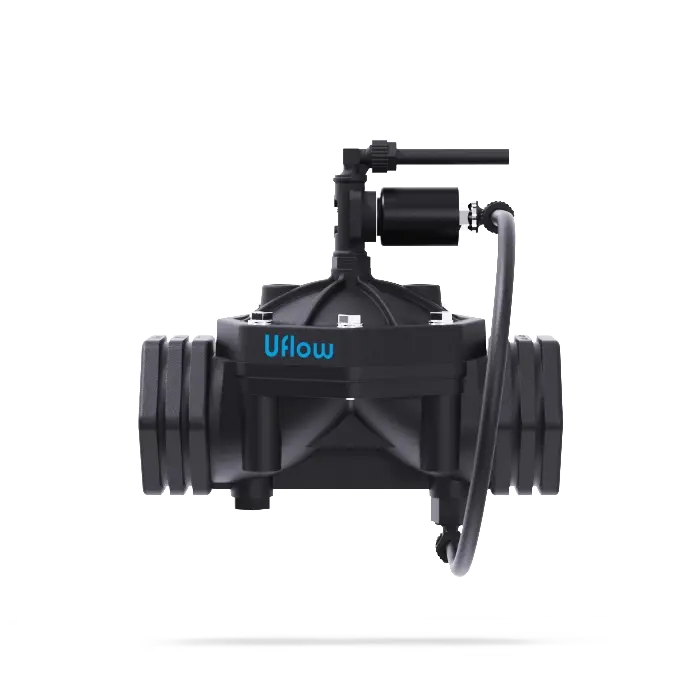

External Pilot Operated Diaphragm Valve (NC/No) - ENN Series

Uflow External Pilot Operated Diaphragm Valve NO and NC Manufacturers Suppliers In globel

Diaphragm Valve Specifications
2 Way - 3 Way Valve Specifications
Technical Data
Dimension

Port

Refer below technical data sheet (Available BSPT / NPT)

End Connection

Screwed

Body Material

Nylon GF

Diaphragm

Natural Rubber

Max Media Temp

60°C

Circumstance Temp

-10°C to 60°C

Media

Water

Main Features

Internal Parts are in superior corrosion resistance steel, Suitable for irrigation.

Port

Refer below technical data sheet (Available BSPT / NPT)

End Connection

Screwed

Body Material

Nylon GF

Seal & ‘O’Ring

Nitrile (NBR)

Max Media Temp

5°C to 50°C

Circumstance Temp

-10°C to 50°C

Media

Water

Main Features

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for irrigation.

operating voltage

24AC

12DC

24DC - Latching

power consumption

8W - Latch, 3W - Delatch

coil features

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Other Specification Data

Available on Request

Model No	Body Material	Pipe (Inch)	Min. Operating Pressure Kg/cm²	Max. Operating Pressure Kg/cm²	Seal & Diaphragm Material	Flow Factor Kv m³ / hr
ENN-6C	Nylon GF	1½”	1	10	Natural Rubber	60
ENN-8C	Nylon GF	2”	1	10	Natural Rubber	70
ENN-9C	Nylon GF	2½”	1	10	Natural Rubber	80
ENN-AC	Nylon GF	3”	1	10	Natural Rubber	90
ENN-BC	Nylon GF	4"	1	10	Natural Rubber	190

Model No	Diagram No.	A	B	C	D	E
ENN-6C	52.1	111	200	71	133	1½”
ENN-8C	52.1	111	200	71	133	2”
ENN-9C	52.1	138	250	87	160	2½”
ENN-AC	52.1	138	250	87	160	3”
ENN-BC	52.1	316	352	203	Ø225	4”
