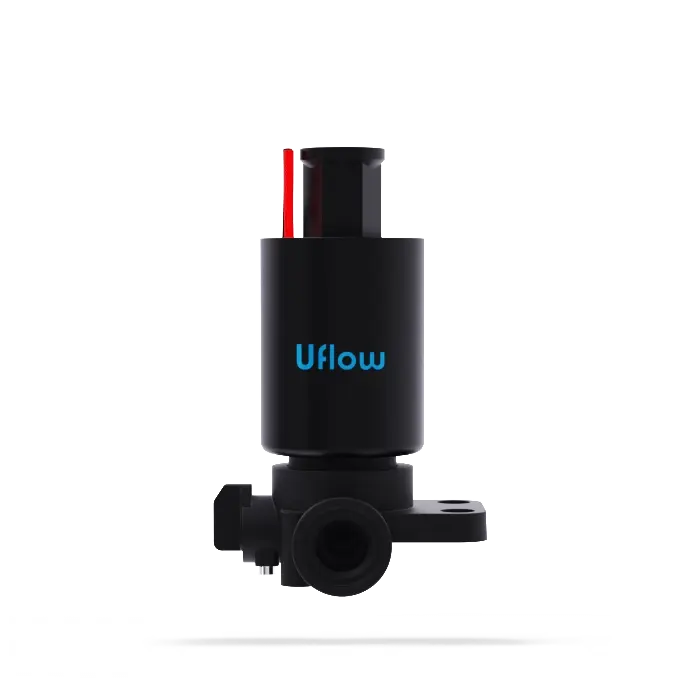

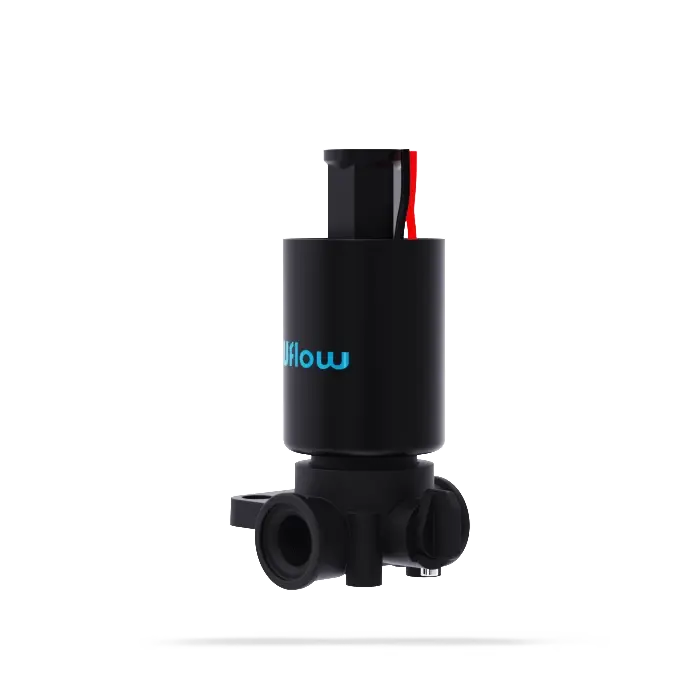

2 Way - 3 Way Direct Acting Pilot Solenoid Valve (Normally Close/Open) - DAP Series

Port

Refer below technical data sheet (Available BSPT / NPT)

End Connection

Screwed

Body Material

Nylon GF

Diaphragm

Nitrile (NBR)

Max Media Temp

5°C to 50°C

Circumstance Temp

-10°C to 50°C

Media

Water

Main Features

Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for irrigation.

operating voltage

24AC

12DC

24DC - Latching

power consumption

8W - Latch, 3W - Delatch

coil features

High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Other Specification Data

Available on Request

Model No.	Valve Type	Body Material	Pipe (Inch)	Orifice(mm)	Max. Operating Pressure Kg/cm²	Seal & Diaphragm Material	Flow Factor Kv m³ / hr
DAP-DND016	2 Way	Nylon GF	¹⁄₈”	1.6	10	NITRILE (NBR)	0.07
DAP-TC012	3 Way	Nylon GF	¹⁄₈”	1.2	10	NITRILE (NBR)	0.042
DAP-TU3012	3 Way	Nylon GF	¹⁄₈”	1.2	10	NITRILE (NBR)	0.042

Valve Position	Valve Type	Port No. - 1	Port No. - 2	Port No. - 3
Normally Close	3 Way	Input	Output	Exhaust
Normally Open	3 Way	Exhaust	Output	Input
Normally Close	2 Way	Output	Input	-
